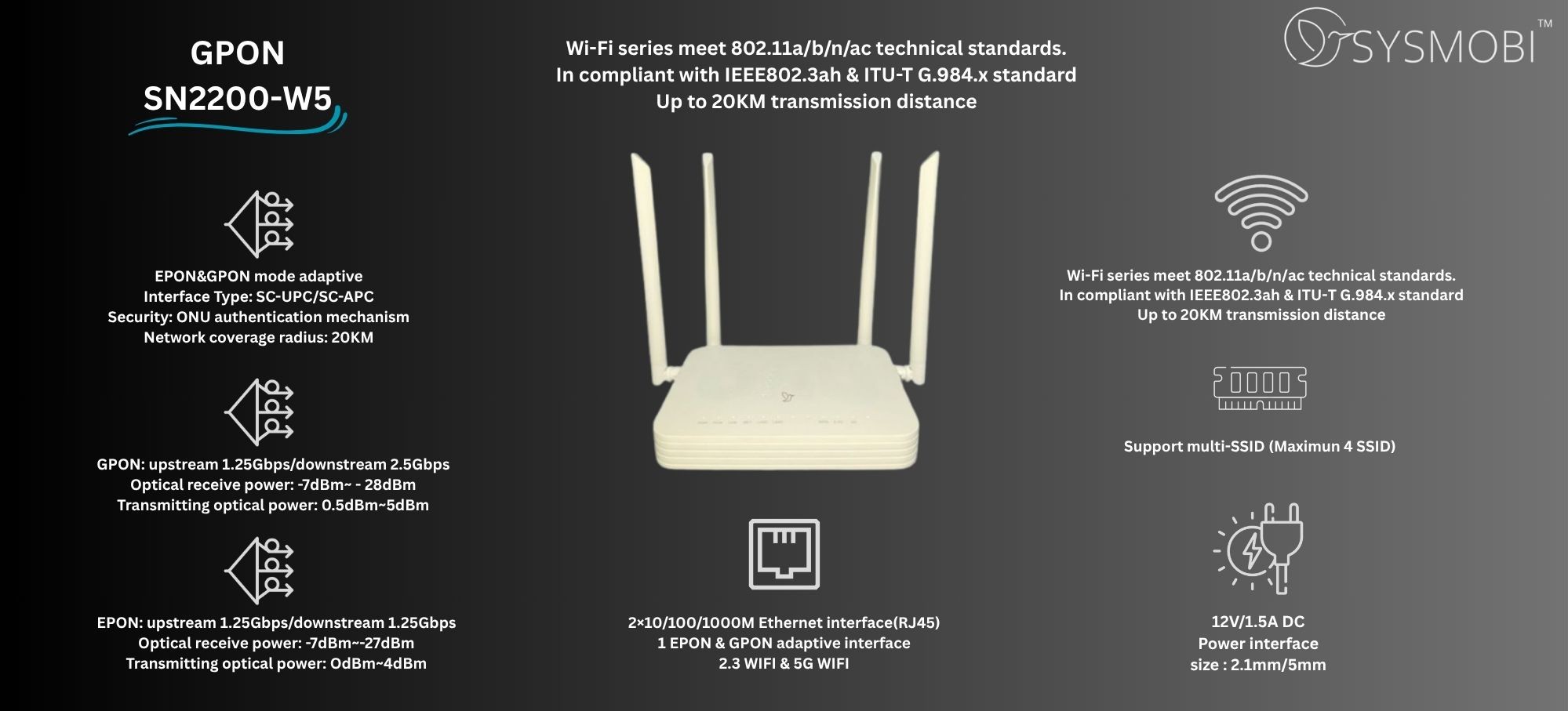

SN2200-W5

2×10/100/1000M Ethernet interface(RJ45)
1 EPON & GPON adaptive interface
2.3 WIFI & 5G WIFI
WiFi Specification IEEE 802.11n compliant,2.4Ghz/5G.
Full IEEE 802/b/g/ac legacy compatibility with enhanced performance.
Two-stream spatial multiplexing up to 866 Mbps PHY data rates.
Support wireless security of 64/128 bit WEP,802.1X,WPA and WPA2
Support multi-SSID (Maximun 4 SSID)
Support automatic channel selection
Support hide SSID.

● EPON&GPON mode adaptive Interface Type: SC-UPC/SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM
● GPON: upstream 1.25Gbps/downstream 2.5Gbps Optical receive power: -7dBm~ - 28dBm Transmitting optical power: 0.5dBm~5dBm
● EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive power: -7dBm~-27dBm Transmitting optical power: OdBm~4dBm
